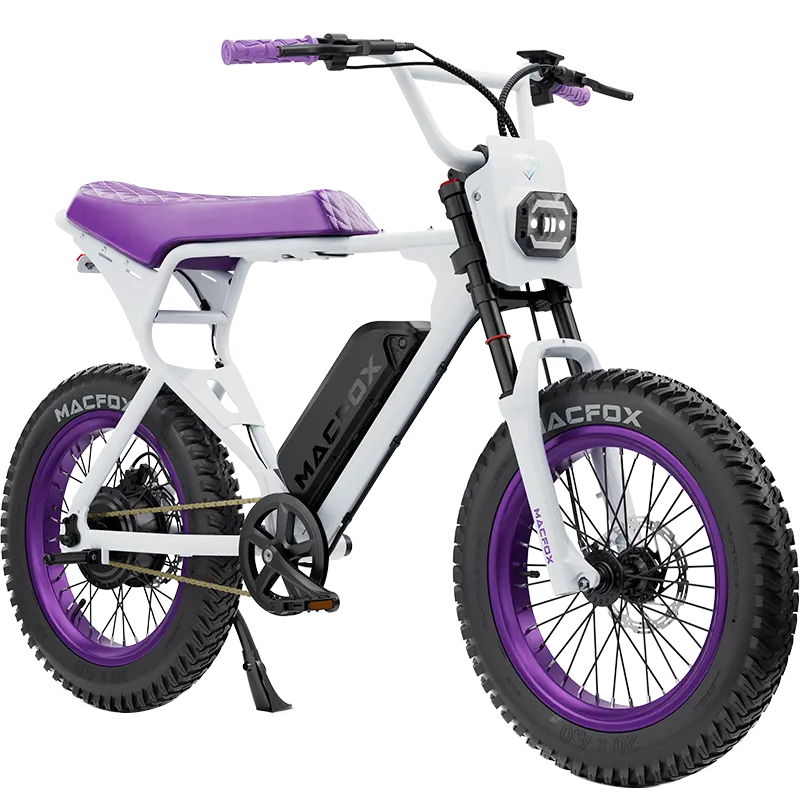

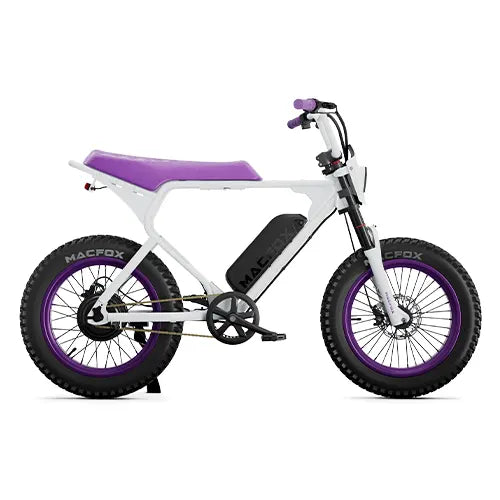

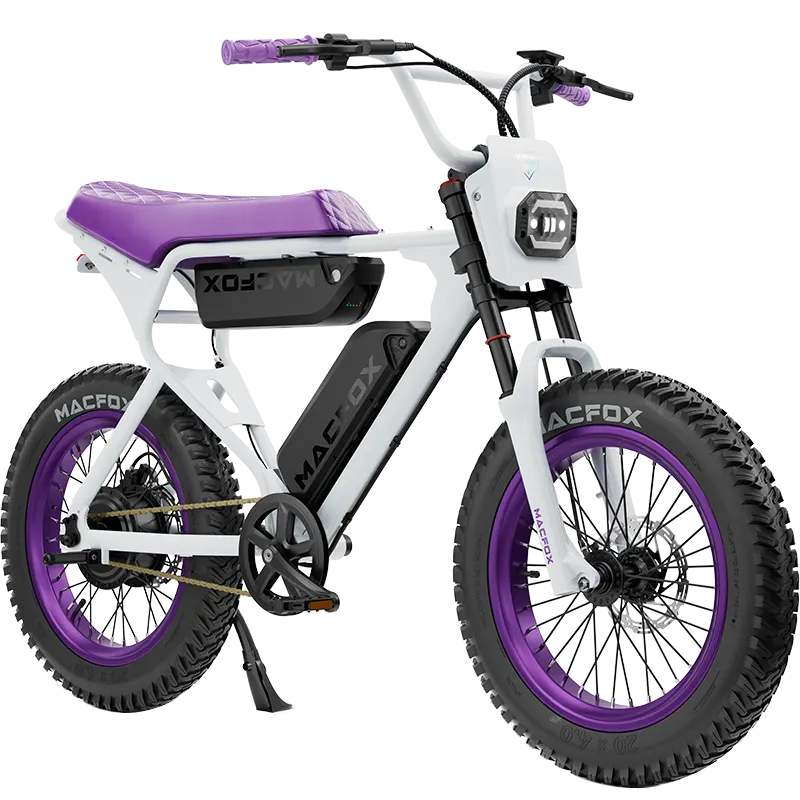

Macfox X1S x Bs.zay Limited Edition Electric Bike
MacfoxElectric BikeSKU MFX-M20P1W
Macfox

Macfox X1S x Bs.zay Limited Edition 48V/10.4Ah 500W Electric Bike

$1,399.00
First order
$1,329.05 for email subscribers

5% off with a code we email you. One email a week, unsubscribe any time.

First order
$1,329.05 for email subscribers

The code lands in your inbox and saves on this device. One email a week. We never sell your info.

Code saved on this device
$1,329.05 at checkout with HABIT5

Applies itself at checkout.

20mph
Top speed
28mi
Max range
500Wh
Battery
65lb
Curb weight
Battery: Single

Ships to the lower 48. Bikes ship free, parts ship free over $99.

2-year Macfox limited warranty
14-day returns — see our return policy
US support — 24-hr answers
Questions before you buy? Call or text (516) 505-1800 — a person who rides answers.
Class 2 e-bike

No license, no registration, no insurance

Federal law treats this as a bicycle, so it belongs on the road and on most bike infrastructure.

20 mphpedal assist cuts out
20 mphthrottle only

Class rules vary by state and by trail. Check yours before you ride.

Sizing or setup question before you buy? Ask the fitment team
Overview

A standard X1S underneath, and nothing standard on top

Pearl white blended with pearl powder, a shield headlight and a gold chain - on the same 500W Class 2 platform.

The X1S x Bs.zay is a co-branded limited edition on the X1S platform, and the whole point of it is the finish. The high-strength carbon steel frame is done in a pearl white blended with pearl powder - it resists scratching and chipping, and under direct light it shifts. Macfox pairs it with a shield-shaped LED headlight, gold chain detailing and a backlit LCD.

Underneath it is a standard X1S: 500W peaking at 750W, 20 mph and Class 2, up to 28 miles on one battery or 56 on two, 20 x 4.0 inch grip tires and hydraulic disc brakes.


750 W
Peak power
500W nominal - the same drivetrain as the standard X1S
500 Wh
Battery capacity
48V 10.4Ah, removable, UL 2271 as a single pack
56 mi
Range, dual battery
Macfox's lab figure with two packs; 28 miles on one
5-6 hr
Charge time
0 to 100% on the 54.6V 2A standard charger
220 lb
Rider weight limit
Rider plus anything you are carrying
1 of a kind
Finish
Pearl white blended with pearl powder, on this edition only
The one you buy for the paint
A limited run, on a platform that is not limited at all.
Where it fits

The one you buy for the paint

Every other bike in the Macfox range is sold on what it does. This one is sold on how it looks - a co-branded limited edition where the frame finish, the headlight and the chain are the product, and the mechanical package is the well-understood X1S underneath.


Exclusive MotorHabit offer

Every bike ships with the free $60 Starter Pack

Two things every new rider buys in week one, already in your order: a mount so navigation stays where you can read it, and a lock so the bike stays yours.

Item 01

Handlebar phone mount

  • Four-corner clamp with a metal safety lock
  • 360° ball-joint swivel, set it to any angle
  • Fits 15 to 40 mm bars, tools-free adjustment
Item 02

6 ft combination cable lock

  • 6 ft braided steel cable
  • Resettable 4-digit combination, no key to lose
  • Frame bracket included, rides on the bike
$0.00 in your cart
Adds itself when you add the bike. Nothing to enter, nothing to claim.
$60 value
What the mount and lock cost on their own.
Yours to keep
Ships with your bike and stays with you.
Power & Control

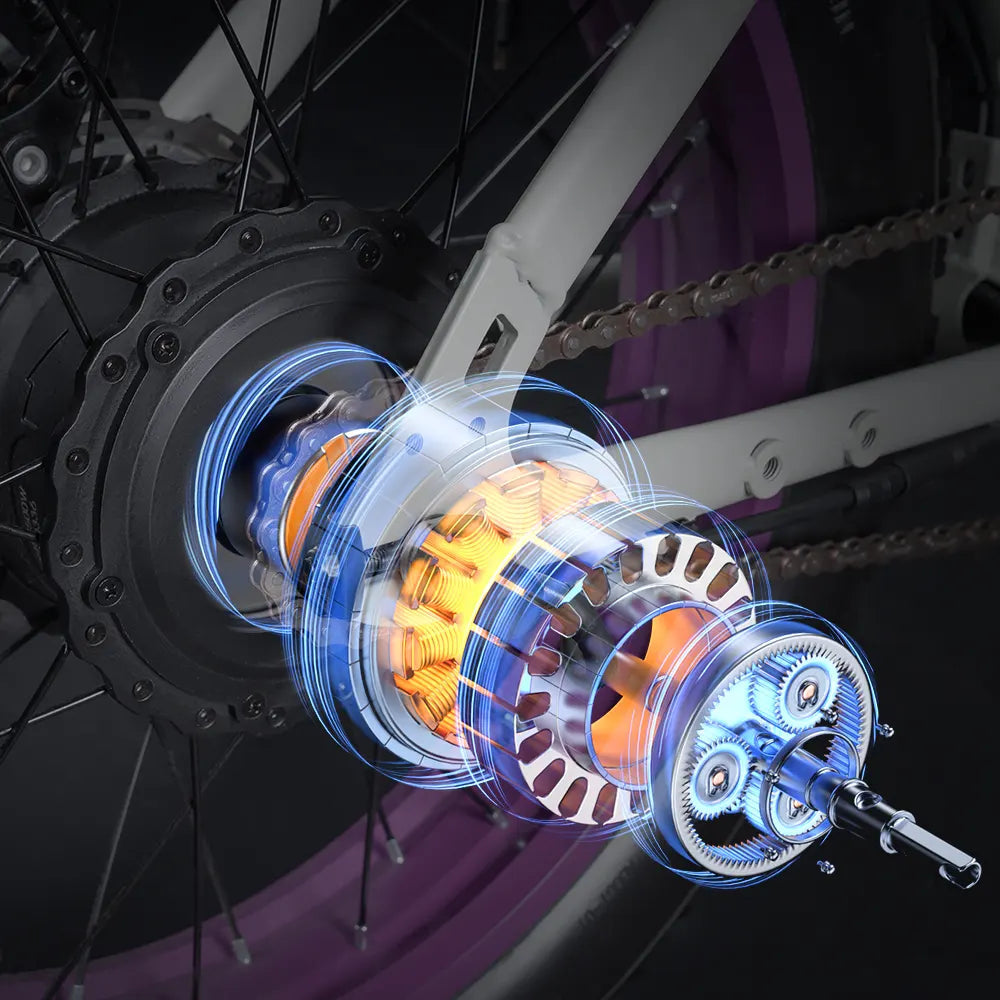

The standard X1S drivetrain, unchanged
Same motor, same ceiling, same parts.
Drive

The standard X1S drivetrain, unchanged

500W nominal, 750W peak, 20 mph, Class 2. Nothing about the limited edition changes what is underneath, which also means every X1S drivetrain part in our catalog fits it.

Motor
500W
Peak power
750W
Top speed
20 mph
Gearing
Single speed
Battery & Charging

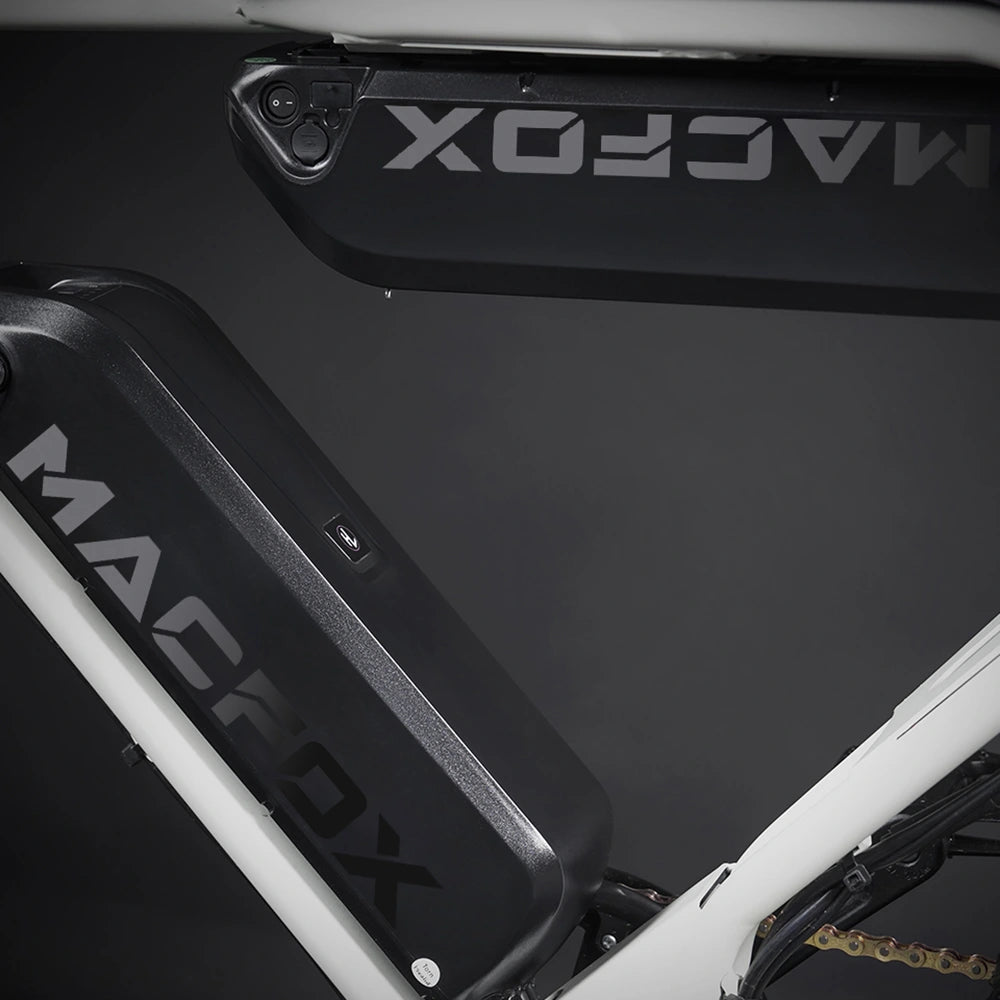

500 Wh, removable, and shared with the range
The same pack as the standard X1S.
Battery

500 Wh, removable, and shared with the range

48V 10.4Ah, lifts out to charge indoors, and takes the same dual-battery kits as the standard X1S. Up to 28 miles on one pack and up to 56 on two, on Macfox's own lab measurement.

Capacity
48V 10.4Ah (500 Wh)
Range
Up to 28 mi single, up to 56 mi dual
Charge time
5-6 hours
Certification
UL 2271, single-battery configuration
Run the numbers

What a full charge costs you

Per full charge
Per mile, 28 mi range
Per 1,000 miles
Based on 0.5 kWh per charge. Drag the slider to your own rate.
Chassis

Pearl white, blended with pearl powder
It moves under the light. Photographs do not do it justice.
Finish

Pearl white, blended with pearl powder

The frame colour is mixed with pearl powder rather than sprayed over the top, which is why it shifts under direct light instead of just looking pale. Macfox says it resists scratching and chipping better than a plain topcoat - a fair claim for a bike that will get leaned against things.

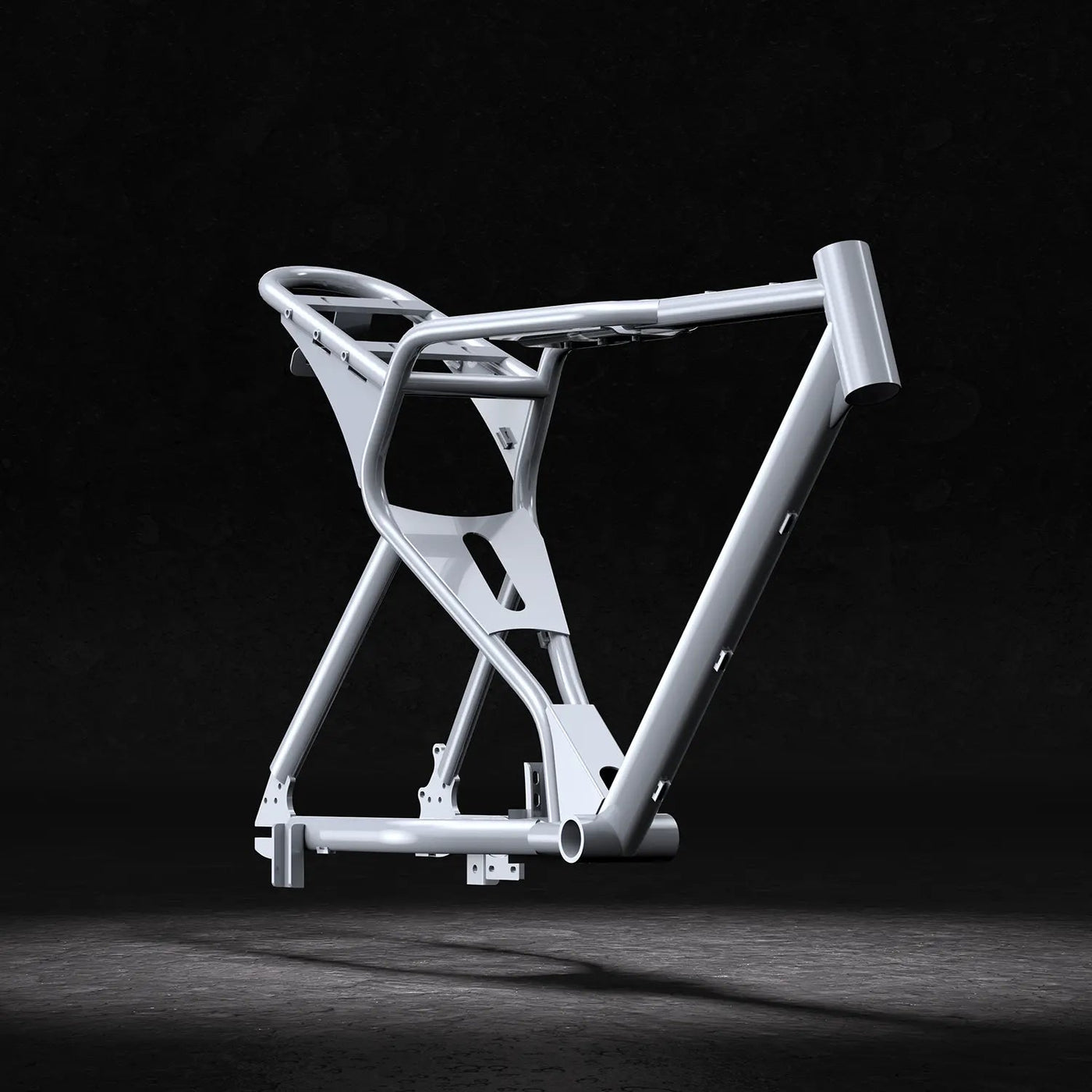

Frame
High-strength carbon steel
Finish
Pearl white with pearl powder
Edition
Co-branded limited run

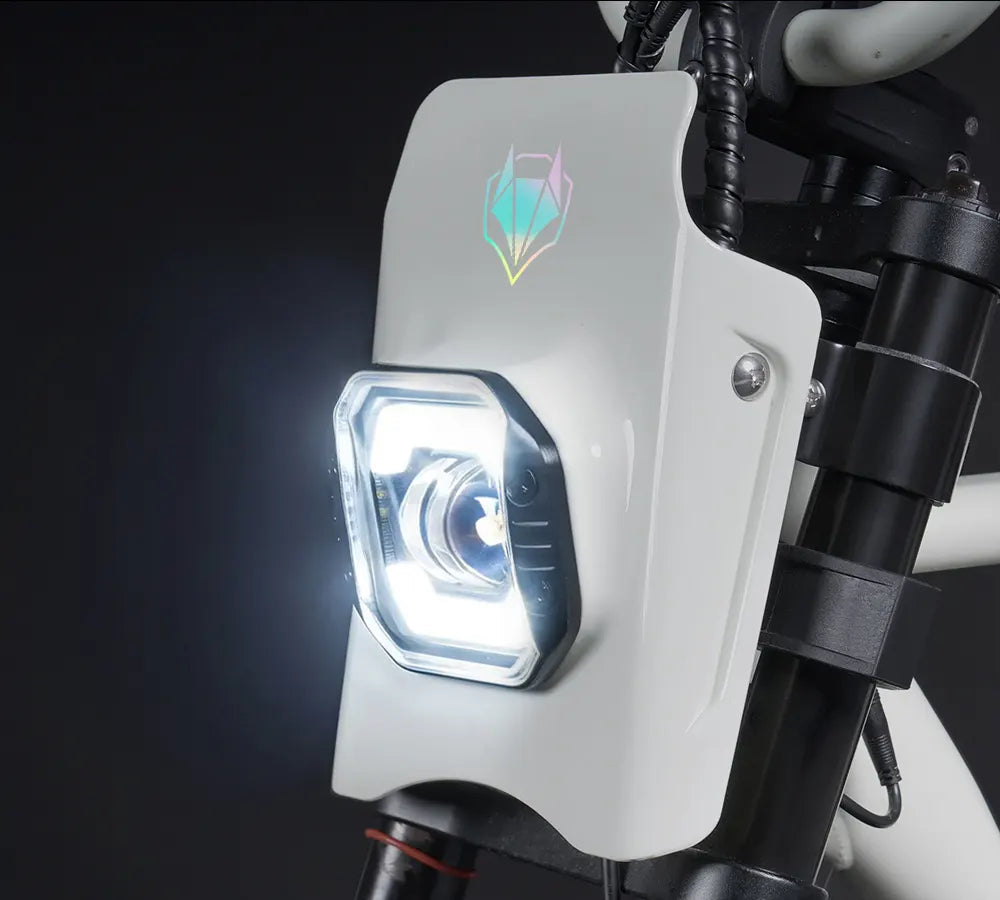

Shield headlight and a backlit LCD
The shield light is the signature.
Lighting

Shield headlight and a backlit LCD

The shield-shaped LED headlight is the piece that changes the face of the bike, and the backlit LCD next to it keeps speed, battery and mileage readable after dark.

Headlight
LED, shield style
Taillight
LED
Display
Backlit LCD

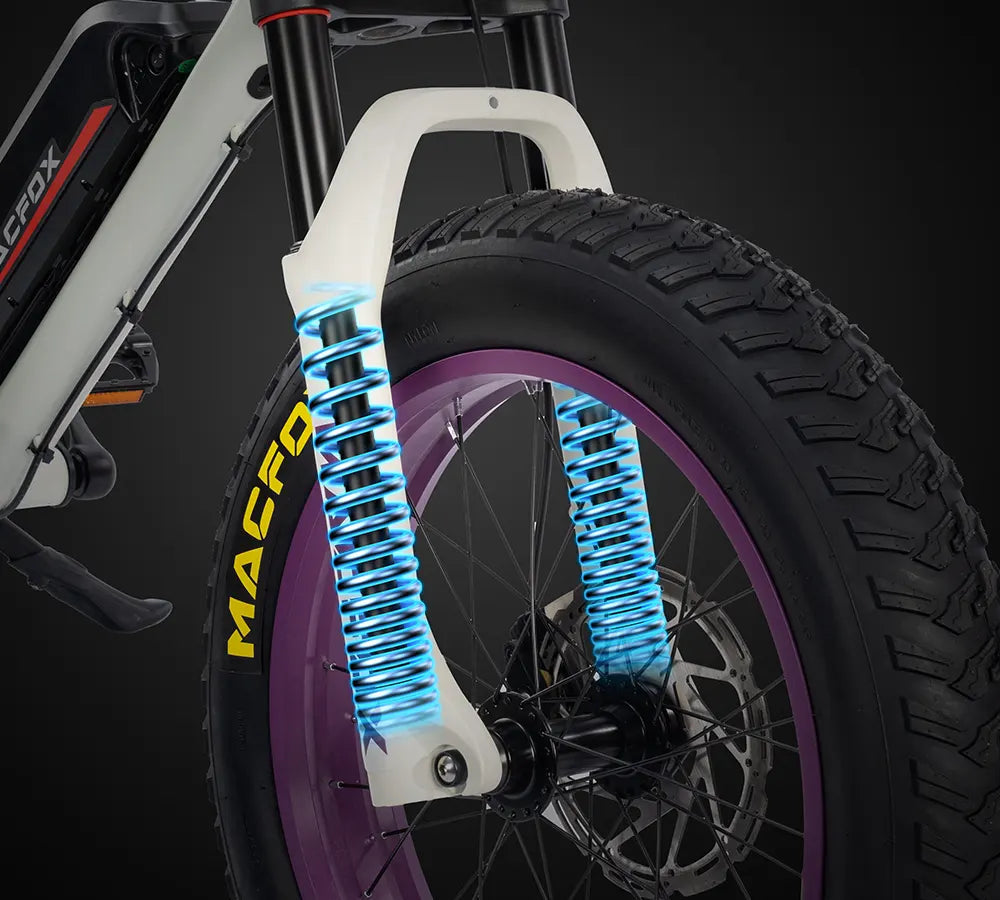

Hydraulic hybrid spring fork, adjustable
Adjustable front, rigid rear.
Suspension

Hydraulic hybrid spring fork, adjustable

A hydraulic damper paired with a coil, adjustable rather than fixed, so it can be set for the rider rather than an average one. Rear is rigid.

Front
Hydraulic hybrid spring fork, adjustable
Rear
Rigid

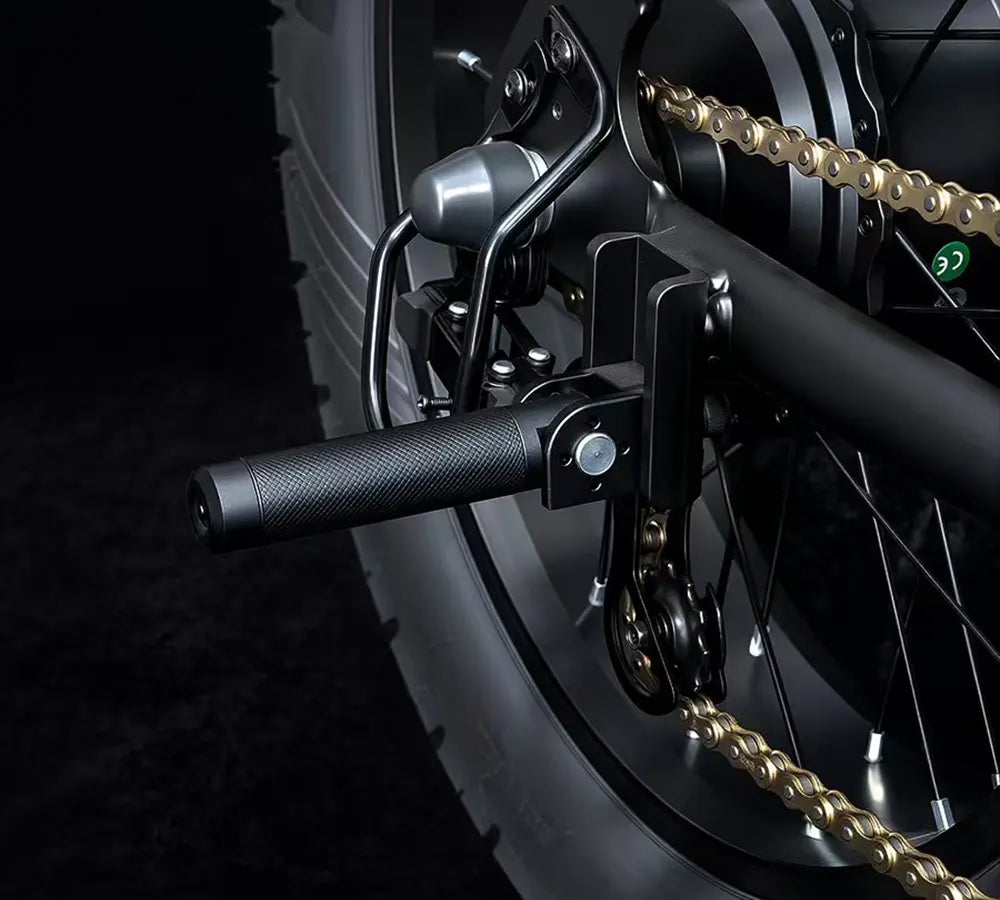

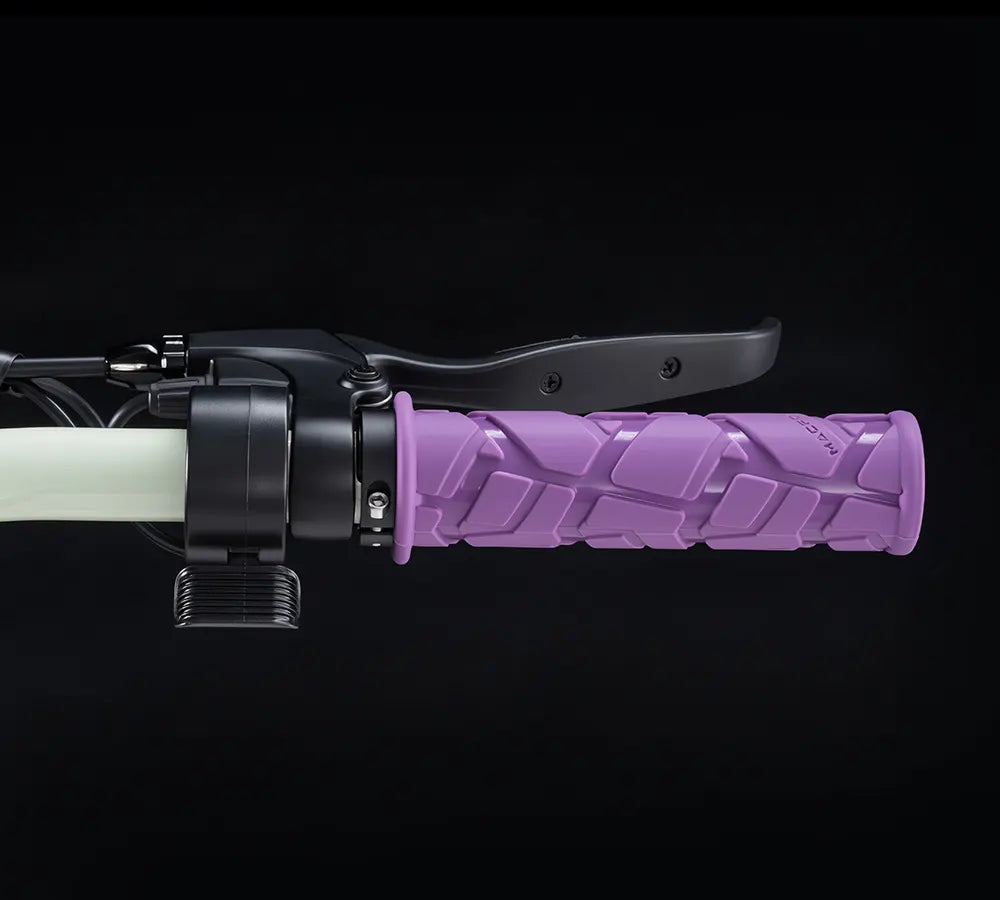

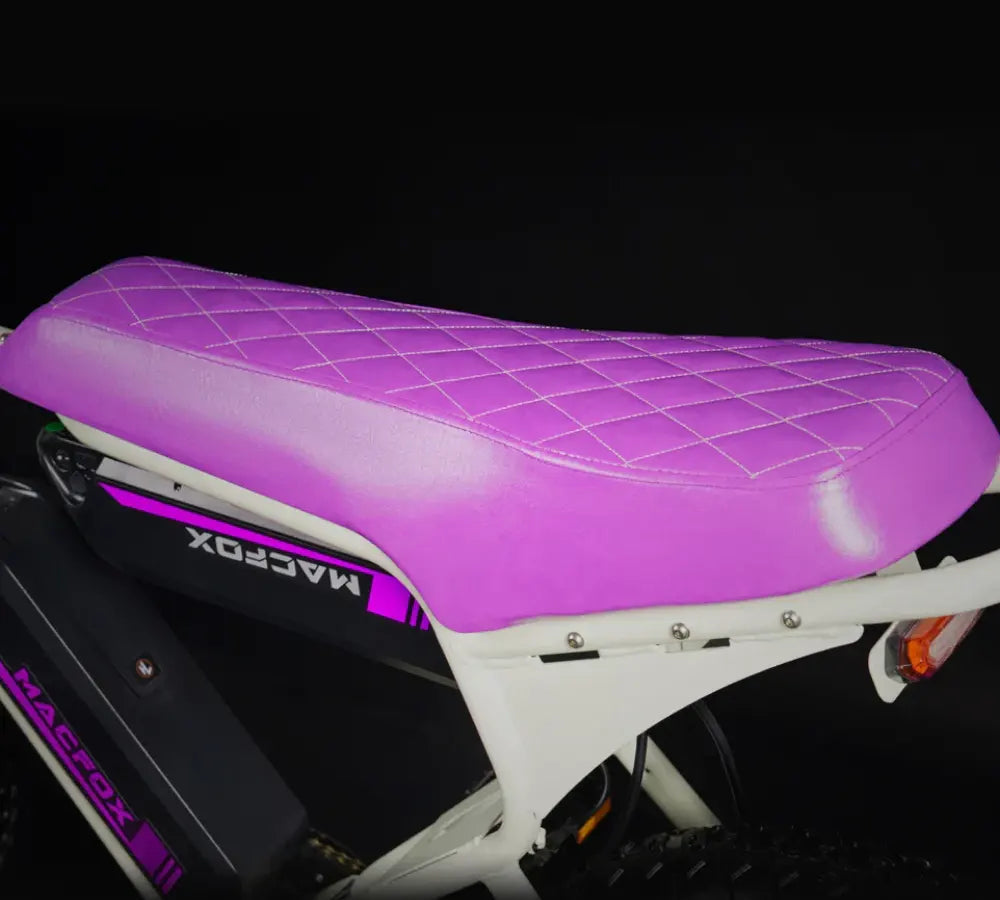

Extended seat, folding pegs, adjustable throttle
Extended seat and folding pegs.
Seat and cockpit

Extended seat, folding pegs, adjustable throttle

An extended seat shaped around a natural riding posture, folding knurled rear pegs, and a thumb throttle that comes off and moves to suit whichever hand you use.

Seat
Extended, ergonomic
Seat height
33 in
Rear pegs
Folding, knurled
Throttle
Thumb, removable and adjustable
Rider Fit

Will it fit you? Here are the numbers.

The question we get asked most. Seat height and rider range decide this more than anything on the spec sheet.


Curb weight
65 lb
Rider weight limit
220 lb
Seat height
33 in
Dimensions
71 x 27 x 42 in
Recommended rider height
5'3" and up
Recommended rider height
5'3" and up

Macfox lists 5'3" and up. Rider weight limit 220 lb, seat height 33 in.

Full Specifications

Every number we have


01Drive System
Motor
500W
Peak power
750W
Top speed
20 mph
Throttle
Thumb throttle, removable and adjustable
Gearing
Single speed
Class
Class 2, UL 2849 certified
02Battery & Charging
Battery
48V 10.4Ah, 500 Wh, removable
Range
Up to 28 mi single battery, up to 56 mi dual
Charge time
5-6 hours
Charger
54.6V 2A, 100-240V input
Certification
UL 2271, single-battery configuration
03Chassis
Frame
High-strength carbon steel, pearl white with pearl powder
Front suspension
Hydraulic hybrid spring fork, adjustable
Rear suspension
Rigid
Brakes
Hydraulic disc, front and rear

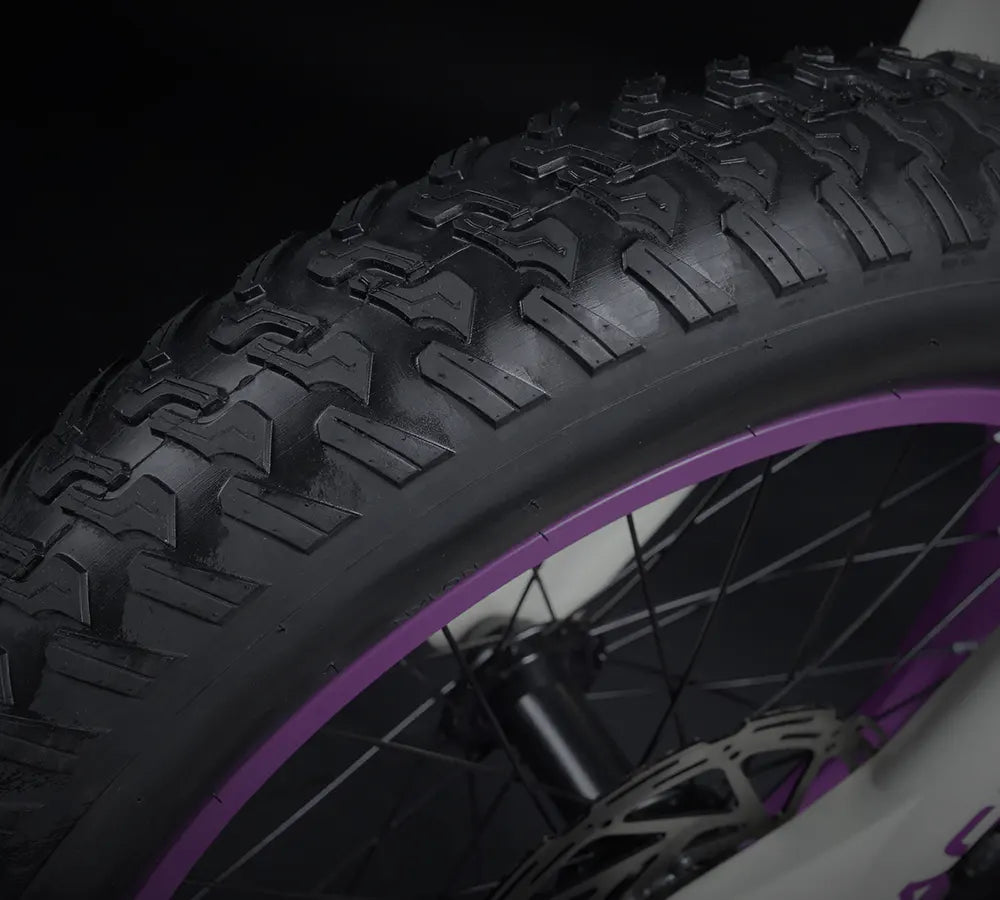

Tires
20 x 4.0 in grip tires
04Lighting & Display
Headlight
LED, shield style
Taillight
LED
Display
Backlit LCD - speed, battery, mileage
05Dimensions & Fit
Curb weight
65 lb
Rider weight limit
220 lb
Seat height
33 in
Dimensions
71 x 27 x 42 in
Recommended rider height
5'3" and up
Model code
EL-M20P
Where It Sits

How it compares to the bikes it gets cross-shopped against


Macfox M16The youth one Macfox X1SThe DIY platform Macfox X1S x Bs.zayThe limited edition Macfox X7The wide one Macfox X2 ProThe full-suspension one
Motor500W500W500W500W750W
Peak power750W750W750W750W1,000W
Battery48V 10.4Ah (499 Wh)48V 10.4Ah (500 Wh)48V 10.4Ah (500 Wh)48V 13Ah (624 Wh)48V 20Ah (960 Wh)
Range, singleUp to 25 miUp to 28 miUp to 28 miUp to 35 miUp to 40 mi
Range, dualNot offeredUp to 56 miUp to 56 miUp to 70 miUp to 80 mi
Top speed20 mph20 mph20 mph20 mph20 mph
Tires16 x 4.0 in20 x 4.0 in20 x 4.0 in20 x 4.5 in front, 20 x 5.0 in rear20 x 4.5 in front, 20 x 5.0 in rear
SuspensionFrontFrontFrontFrontFront and rear
BrakesMechanical discHydraulic discHydraulic discHydraulic discHydraulic disc
Weight65.7 lb65 lb65 lb87 lb72 lb
Rider weight limit220 lb220 lb220 lb330 lb330 lb
Rider height3'11" and up5'3" and up5'3" and up5'1" and up (X7L 5'3")5'3" and up
Price from$1,099$1,399$1,399$1,599$2,199

Range and top speed are Macfox's own lab figures, measured with an average rider cruising steadily in second gear. Treat them as a ceiling, not a promise - hills, headwind, throttle use and cold weather all take a bite out of them.

In The Box

What shows up at your door


ITEM 01

Macfox e-bike

About 95% pre-assembled

ITEM 02

Battery

Removable, locks to the frame

ITEM 03

Charger

100-240V wall charger

ITEM 04

Headlight and taillight

Fitted

ITEM 05

Tool kit and user manual

Assembly hardware included

Delivery & Warranty

Shipping, damage, and the fine print in plain words


Shipping & delivery

  • Ships in 1 to 4 business days.
  • Free US shipping on this bike, no code needed.
  • You get tracking as soon as the carrier scans it.
  • On a dual-battery order the second pack ships separately - that is Macfox's own arrangement, not a split we chose.
  • Continental US only. We cannot ship a lithium pack to Alaska, Hawaii or outside the country.

2-year Macfox limited warranty

  • Macfox is the manufacturer and carries a 2-year limited warranty; MotorHabit is the dealer and every claim starts with us.
  • Report shipping damage within 7 days of delivery, with photos, so we can file the carrier claim in time.
  • The battery is UL 2271 certified in its single-pack configuration. A dual-battery setup is outside that certification's scope - Macfox states this and so do we.
  • Modifying the controller or the electronic control system voids the warranty, and Macfox recommends against it.
Reviews

What riders say


Q&A

Questions riders actually ask


No. Same 500W motor, same 48V 10.4Ah pack, same hydraulic disc brakes, same 20 x 4.0 in tires and the same geometry. The differences are the pearl white frame finish, the shield headlight, the gold chain and the backlit LCD.
Yes, with two exceptions worth knowing: the iridescent chain and the shield headlight are listed for the Bs.zay and X1S specifically, and a few accessories are one or the other. Every part page here carries a fitment table that names this bike by model.
The colour is blended with pearl powder through the coat rather than sprayed on top, which Macfox says makes it more resistant to scratching and chipping than a plain topcoat. It is still paint on a bike that gets ridden.
No. It is a Class 2 e-bike capped at 20 mph, which federal law treats as a bicycle. Local rules still vary.
No - Macfox ships the second pack separately, on the same order.
