- Plan on 90 minutes the first time. The swap itself is 40, the rest is panels and second-guessing.
- Disconnect the battery and wait before you touch a phase wire. Controllers hold charge after the key is off.
- Phase wires and hall sensors have to match. Two wrong phases will spin the motor backward or not at all.
- Nothing gets cut. Every connector on a stock Sting R harness is keyed and reversible.
- Test on the stand at low throttle before the wheel ever touches the ground.
A controller is the part of the bike that decides how much of the battery reaches the motor and how fast it gets there. Swapping it is the single biggest change you can make to how a Sting R feels, and it is also the job most likely to leave you with a bike that will not turn on if you rush it.

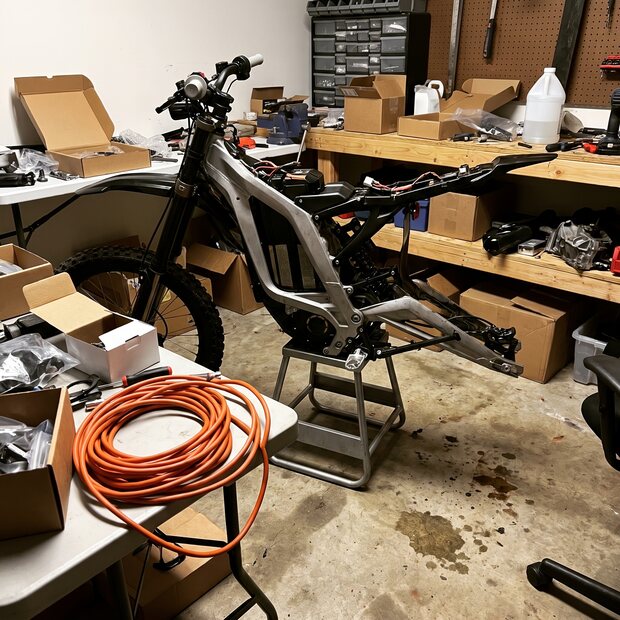

The video runs the whole job in real time. This page is the reference you keep open on the bench: the connector map, the torque values, and the list of things that go wrong.
What changes
A larger controller raises the current ceiling. More current through the same motor means harder acceleration and more heat. The motor and the battery both have to be willing to give it, which is why a controller swap on a stock pack has a limit that has nothing to do with the controller.
Nothing here changes top speed on its own. Top speed comes from gearing and voltage. A controller changes how fast you arrive at the top speed you already had.
- A bigger controller on a stock pack can pull the pack into low-voltage cutoff under load. The bike shuts off mid-climb. That is the pack, not the controller.
- Aftermarket controllers may remove speed limiters. That can make the bike illegal to operate where you ride and can void the manufacturer warranty.
- More current means more motor heat. Watch temperatures for the first few rides, especially on climbs.
Before you start
- Metric hex set, [0] mm through [0] mm
- [00] mm socket for the controller mounts
- Torque wrench in the [00] to [00] Nm range
- Dielectric grease for the connectors
- Zip ties, and a marker for labeling plugs
- A stand that lets the rear wheel spin freely
Photograph every connector before you unplug it. The harness looks obvious while it is together and identical once it is apart. Two minutes of photos beats an hour of guessing.
The connector map
Stock Sting R harness. Yours may differ by model year, so match the connector shapes to the video rather than the names.
| Connector | Count | Goes to | Watch for |
|---|---|---|---|
| Phase wires | 3 · thick | Motor | Color match matters. Two swapped phases and the motor fights itself. |
| Battery main | 2 · thick | Pack | Last thing connected, first thing removed. Always. |
| Hall sensor | 1 · 6 pin | Motor | Keyed. If it does not seat easily it is backward. |
| Throttle | 1 · 3 pin | Right grip | Route away from the steering stop so it does not stretch at full lock. |
| Brake cutoffs | 2 · 2 pin | Both levers | Skip these and the bike will not cut power when you grab a lever. |
| Ignition and display | 1 · multi | Key and dash | Some controllers need an adapter here. Check before ordering. |
The swap
Key off, key out, battery main disconnected. Wait before touching phase wires. Capacitors hold charge after everything looks dead.
Wait: [0] minutes after disconnectSeat first, then side panels. Keep the fasteners in a tray by location. The fasteners are not all the same length.
Every plug, both ends, before anything comes apart. Tape and a marker on the harness side of each connector.
Signal connectors first, phase wires last. Pull on the connector body, never the wire.
Support it as the last bolt comes out. They are heavier than they look and the phase wires do not enjoy holding the weight.
Torque on reassembly: [00] NmFins in the airflow, connectors facing where the harness already runs. Do not force the harness to reach. If it is tight, remount rather than stretch.
Torque: [00] NmMatch colors and seat each one fully. A partially seated phase connector will arc under load and melt itself into a repair you did not plan.
Hall, throttle, both brake cutoffs, ignition. A dab of dielectric grease on each. They should click, not scrape.
Zip tie so nothing touches the swingarm, the tire, or a heat source. Leave slack at the steering head for full lock both ways.
Connect the main. Expect a spark at the connector. That is normal capacitor inrush, not a fault.
First power up
- Bike on the stand, rear wheel free, nothing near the chain or the sprocket.
- Stand to the side of the bike, never behind the wheel.
- Crack the throttle. Do not roll it on. You are checking direction, not making power.
- Test both brake cutoffs before anything touches the ground.
The wheel should spin smoothly in the forward direction, quiet, with no vibration. Grab each brake lever and confirm power cuts. Roll the throttle slowly to about a third and listen. Then shut it down and check that nothing is warm that should not be.
When it does not run
Almost every failed swap is one of these five, in this order of likelihood.
| Symptom | Usual cause | Fix |
|---|---|---|
| Nothing at all | Ignition connector or battery main not fully seated | Reseat both. Check the key circuit before blaming the controller. |
| Spins backward | Two phase wires swapped | Swap any two phases. There is no wrong pair to try. |
| Jerks, stutters, will not start smoothly | Hall sensor connector partly seated, or phase and hall combination mismatched | Reseat the hall plug first. Then work through phase and hall combinations one at a time. |
| Runs, then cuts under load | Pack hitting low-voltage cutoff, not a controller fault | Check pack voltage under load. A stock pack has a current ceiling. |
| No throttle response, everything else fine | Brake cutoff stuck closed, or throttle connector on the wrong plug | Unplug each cutoff one at a time to isolate. Then check the throttle plug. |
Full transcript
0:00[Transcript to be pasted from the video export. Keeping the full text on the page makes every chapter searchable and gives the article something to rank on beyond the title.]
1:34[Continue by timestamp. Two to three sentences per chapter is enough if the full text is long.]
Parts in this video
Sting R Upgrade Controller, Plug and Play Harness
Connector Service Kit, Dielectric Grease and Ties
Send a photo of the connector you are looking at to hello@motorhabit.com or call 516-505-1800. We answer fitment and wiring questions in under 24 hours, and we would rather hear from you before the bike goes back together.
